structural decking

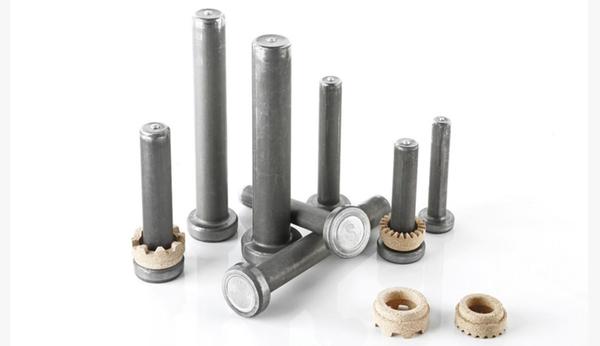

Shear stud welding is frequently used in the installation of metal decking sheets in construction projects, particularly for composite steel-concrete floors in buildings and bridges. Metal decking sheets are thin steel panels that are typically corrugated or ribbed and serve as the formwork for pouring concrete slabs. The shear studs are welded to these decking sheets to create a composite structure that combines the benefits of both steel and concrete materials. Here's how shear stud welding is applied in the installation of metal decking sheets: 1. Preparation: The steel beams or girders that will support the composite floor are prepared by cleaning their surfaces to ensure proper weld quality. The metal decking sheets are then laid out over the steel beams to create the formwork for the concrete slab. 2. Shear Stud Placement: Shear studs are placed in predetermined patterns and spacings on the surface of the metal decking sheets. These studs are often arranged in rows along the length of the sheet, with specific spacing and placement according to engineering and design specifications. 3. Welding Process: The shear studs are welded to the metal decking sheets using specialized stud welding equipment. This involves creating an electric arc between the end of the stud and the metal decking surface. The heat generated by the arc melts both the stud and the decking sheet, forming a weld pool. The stud is then pressed into the molten pool, and as it cools and solidifies, it fuses with the metal decking. 4. Concrete Pouring: Once the shear studs are welded to the metal decking sheets, concrete is poured over the sheets. The shear studs protruding from the decking become embedded within the concrete as it cures and hardens. This creates a composite structure where the steel decking, shear studs, and concrete work together to resist loads and distribute them effectively. 5. Composite Action: The composite structure formed by the metal decking, shear studs, and concrete offers several benefits. It enhances the load-carrying capacity of the floor system, improves fire resistance, and provides better stiffness and vibration control. 6. Construction Efficiency: Shear stud welding in metal decking installation is efficient and allows for rapid construction progress. The composite system eliminates the need for temporary supports during the concrete pour, as the studs provide the necessary connection between the steel beams and the concrete slab. In summary, shear stud welding is a crucial technique in creating composite structures with metal decking sheets and concrete. It optimizes structural performance and offers time-saving benefits during the construction of floors in buildings, bridges, and other structures.

The TR 75 deck profile sheet is a cold-formed, trapezoidal steel sheet used in composite or reinforced concrete floor systems. It acts as a permanent formwork during construction and can contribute to the slab’s structural strength after the concrete is poured.

The TR 64 deck profile sheet is a versatile and efficient solution for modern floor slab construction, combining structural support, speed of installation, and cost savings. Its trapezoidal profile and steel properties allow for durable, lightweight, and safe floor systems in multi-storey and industrial buildings.

The TR 51 Deck Profile Sheet is a high-strength structural decking solution widely used in commercial, industrial, and residential construction. Designed for both composite floor systems and roof decking, the TR 51 profile offers exceptional load-bearing capacity, structural stability, and design flexibility.

The TR 60 Deck Profile Sheet is a high-performance structural steel decking system engineered for modern construction needs. With a 60 mm deep profile, it provides excellent load-bearing capacity, making it ideal for composite floor slabs, roof decks, and mezzanine structures. The TR 60 design ensures optimal structural efficiency, faster installation, and long-term durability in diverse building applications. Benefits - • Un-propped spans in excess of 3.5m • Reduced concrete volume • Fire rating up to 4 hours • Trough stiffeners positioned to ensure central stud position • Soffit Wedge Nut fixings available with 1kN load capacity
